Notes：
-
Compatibility Notes:
At least for now, this function can only be used on the Freo Z10 and the Freo Z Ultra.
-
Purchase Notes：
When making the first purchase, pay attention to buying the maintainer pack that includes the maintainer.
More details for your reference:
👉 Notes for Wood Floor Maintainer | Freo Z Ultra & Freo Z10
👉 Notes for Powerful Stain Remover | Freo Z Ultra & Freo Z10
-
Usage Notes：
Since the two solutions are installed in the same position, the machine can only activate the powerful stain removal or wood floor maintainer function at a single time. If both functions are needed, the agent needs to be replaced halfway.
Activation Guide：
Since the two solutions are installed in the same position, the activation method of the App is the same. The machine will identify whether the installed solution is a powerful stain removal or a wood floor maintainer, and the same button on the App will display the corresponding function according to the situation.
However, only rooms with wood floors can be maintained, so for activating the wood floor maintain function, please set the floor material firstly.
👉 Map Editing - Floor Material
-

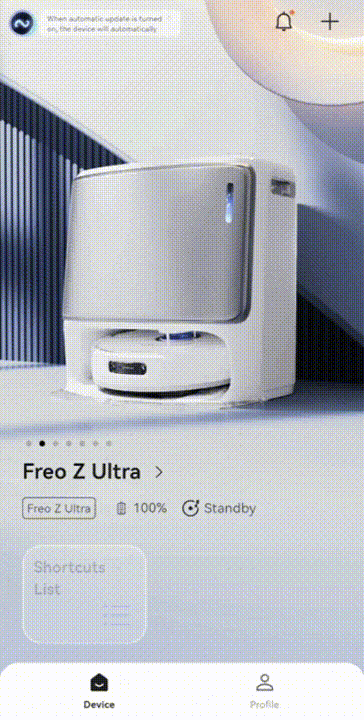

App Activation Guide：
Maintenance
-
Routine Maintenance
Stain Removal & Wood Floor Maintenance Activation | Freo Z Ultra
-
Troubleshooting Maintenance
1. Powerful Stain Remover Status Detection Anomaly

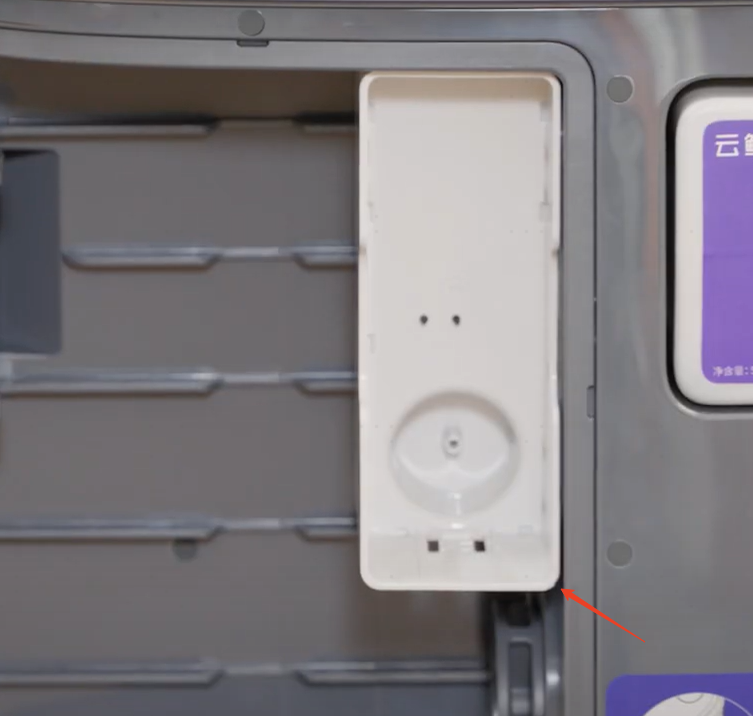

① Check if the powerful stain remover is properly installed. Note: When installed correctly, there should be no gap at the position indicated by the arrow in the diagram.
👉 Freo Z Ultra Example: Stain Removal & Wood Floor Maintenance Activation
② Check if the product installed is indeed the powerful stain remover.

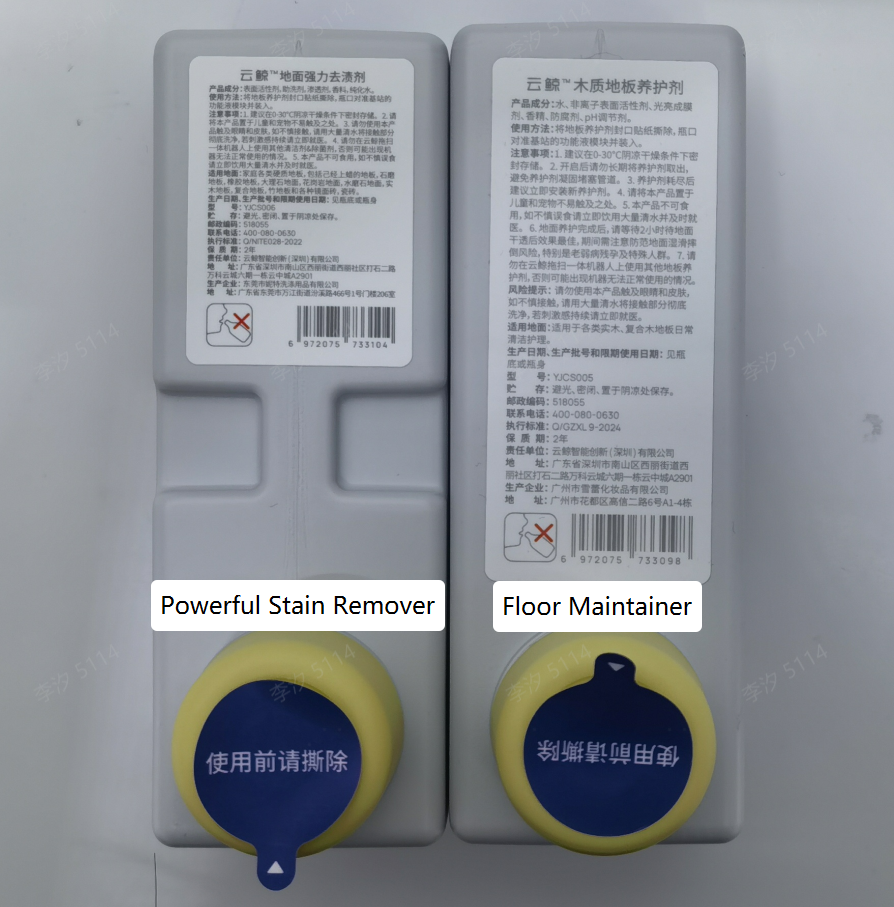

The Powerful Stain Remover and floor maintainer are installed in the same location and have almost identical appearances, so special attention should be paid to distinguishing them.

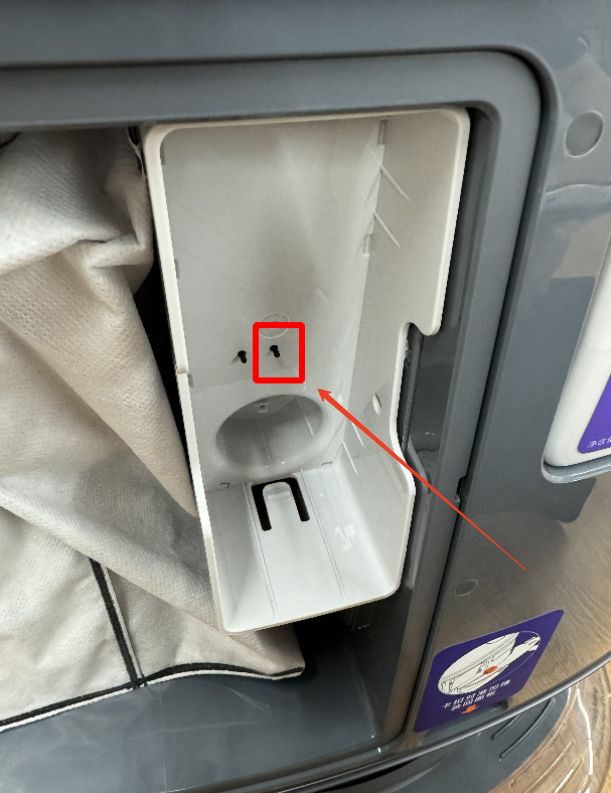

③ If the installation is proper, please remove the powerful stain remover, then press the black detection button on the right alone. If the app shows "installed", ask support for a new powerful stain remover; if still not, the base station is faulty and needs repair.
2. Floor Is Sticky after Doing Maintenance
When you activate this mode, the robot applies floor maintainer to fill gaps in wooden floors, creating a protective film against water and air to prevent cracking from wood contraction. The maintainer typically takes 4-6 hours to dry (time varies with humidity), stepping on it prematurely may leave footprints.
We recommend activating this feature before bedtime or when leaving home, allowing it to dry by morning or your return.
*(The above content source: Robot Vacuum Accessories Comprehensive Troubleshooting Guide)
