Note:
This form lists the error codes in numerical order. If you cannot find the error code you have encountered or the provided solutions fail to resolve the issue, please contact our customer service team at support.na@global.narwal.com (US & CA only).
When contacting customer service, please provide the error code.
▲ 01 / 02 - Roller Brush
Resolution:
1. Try reinstalling the roller brush, ensure it is installed correctly, and it is recommended to clean it by the way to make sure there is no hair or foreign objects tangled on it.
2. If the problem persists, try restarting (turn the machine off and then on again).
3. If the problem still exists, contact support.
▲ 03 - Filter of Dirty Water Tank
Resolution:
1. Try reinstalling the filter, ensure it is installed correctly, and it is recommended to clean it by the way to prevent excessive dust accumulation.
👉 S20 Pro Example: How To Disassemble, Clean, And Install the Antibacterial Filter
2. If the problem persists, try restarting (turn the machine off and then on).
3. If the problem still exists, please contact customer service.
▲ 04 - Dirty Water Tank is Full
Resolution:
1. Check if the dirty water tank is full. If so, empty it.
2. A 'full' alert during low-area cleaning is normal, as water tilting may trigger the sensor at the top of the dirty water tank.
3. Check if you have cleaned high-salt-content waste (e.g., pickle brine, soup, seafood preservative liquid, etc.). In such cases, rinse the front and back of the dry waste bin and manually clean any debris between the electrode strips.
4. If the problem persists, try restarting (turn the machine off and then on).
5. If the problem still exists, please contact customer service.
▲ 05 - Clean Water Tank is Empty
Resolution:
1. Refill the clean water tank.
2. If the error persists despite having water in the tank, try activating MAX Boost Mode several times to see if it resolves the issue.
👉 How Do I Enable the MAX Boost Mode?

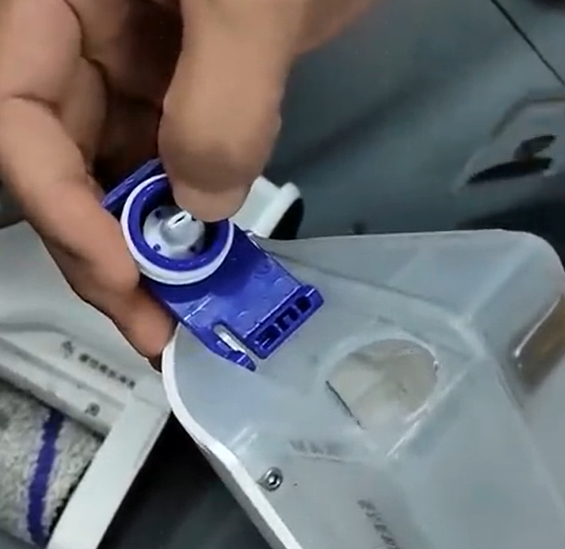

3. Check if the duckbill valve in the clean water tank is functioning properly.
4. Inspect the rubber ring at the chassis water inlet for deformation.
5. If the problem continues, contact support.
▲ 08 - Fan Motor Current Error
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 10 - Water Pump Current Error
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 15 - Pipe Blockage
Resolution:
1. Try cleaning the drainage pipe and roller brush.
👉 S20 Pro Example: How To Maintain the Pipeline
2. If the problem persists, try restarting (turn the machine off and then on).
3. If the problem still exists, contact support.
▲ 16 - Battery Overheating
Resolution:
1. Check if the Vacuum Mop is charging in a high-temperature environment. If yes, move it to a cool shaded area and observe if the problem still occurs.
2. Power off the Vacuum Mop for 2 hours, then restart to see if the error disappears.
3. If the problem persists, contact support.
▲ 31 - Fan Not in Position
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 32 - Water Pump Not in Position
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 33 - Air Pump Not in Position
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 34 - Roller Motor Not in Position
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 35 - Main Control Board Communication Error
Resolution:
1. Please check whether the handle is properly installed. Correct installation should meet these criteria
① An audible "click" sound is heard upon insertion
② No visible gap at the connection point
③ The handle cannot be pulled out without pressing the release button
2. It is recommended to repeatedly detach and reattach the handle (with 10-second intervals between each operation), ensuring proper installation each time, then restart the machine to check if the error is resolved. If not, contact support.
▲ 36 - Battery Pack Communication Error
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 38 - Roller Board Communication Error
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 39 - Drying Malfunction Due to Heater Overheating
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 41 - Operation Abnormal
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 42 - Ambient Temperature Reading Abnormal
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 43 - Cleaning Pump Not in Position
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
▲ 44 - Operation Abnormal
Resolution:
Try pressing and holding the power button for 10 seconds to shutdown while the Vacuum Mop is powered on, then restart to see if the error disappears, if not, contact support.
