⚡ In short words:
1. clean the charging contacts and wheels
2. properly install the cleaning tray, roller brush
3. If the base station was moved, remapping is required.
🔍 Detailed Step-by-step guide:

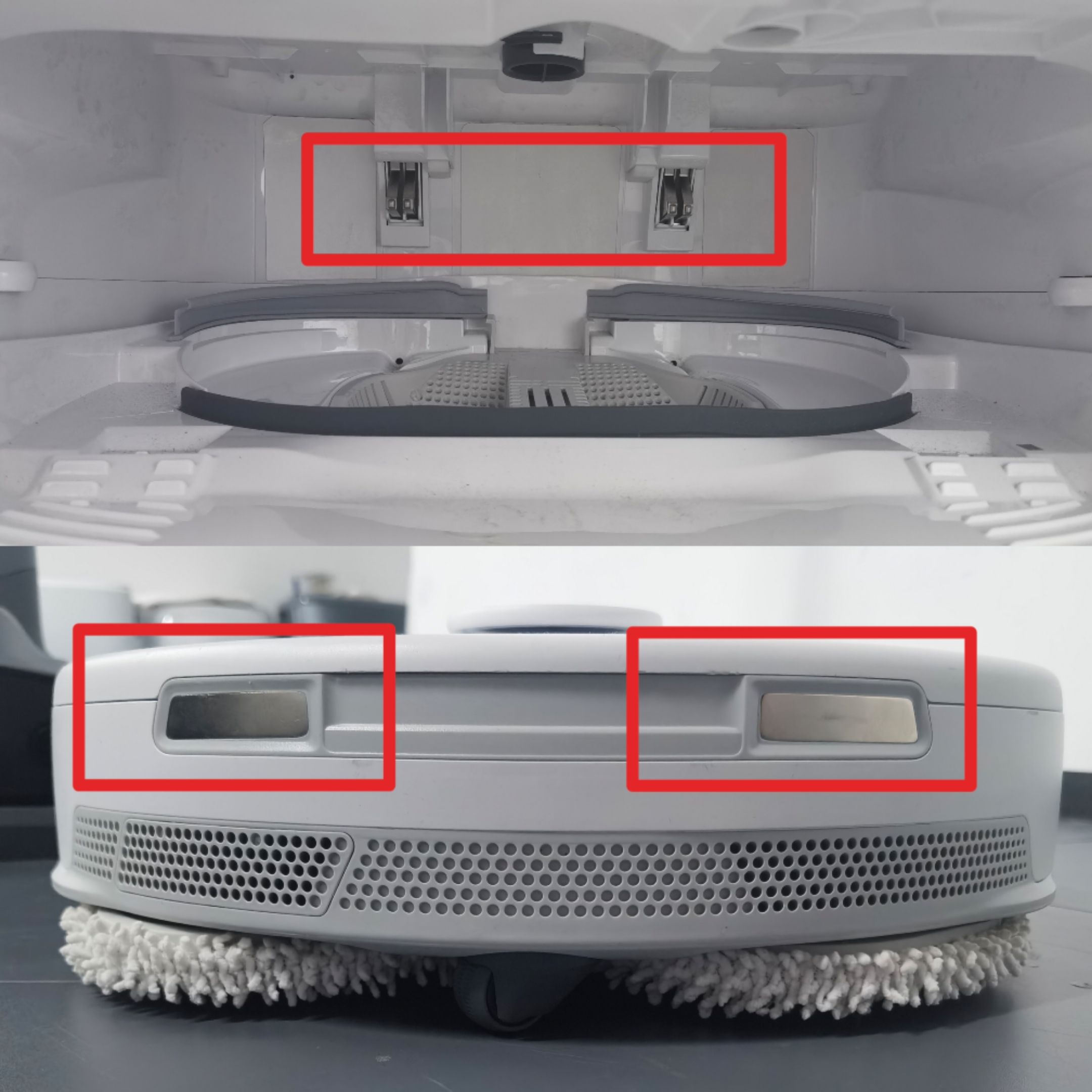

1. Clean both the robot's and base station's charging contacts (reflector stickers) with a damp soft cloth

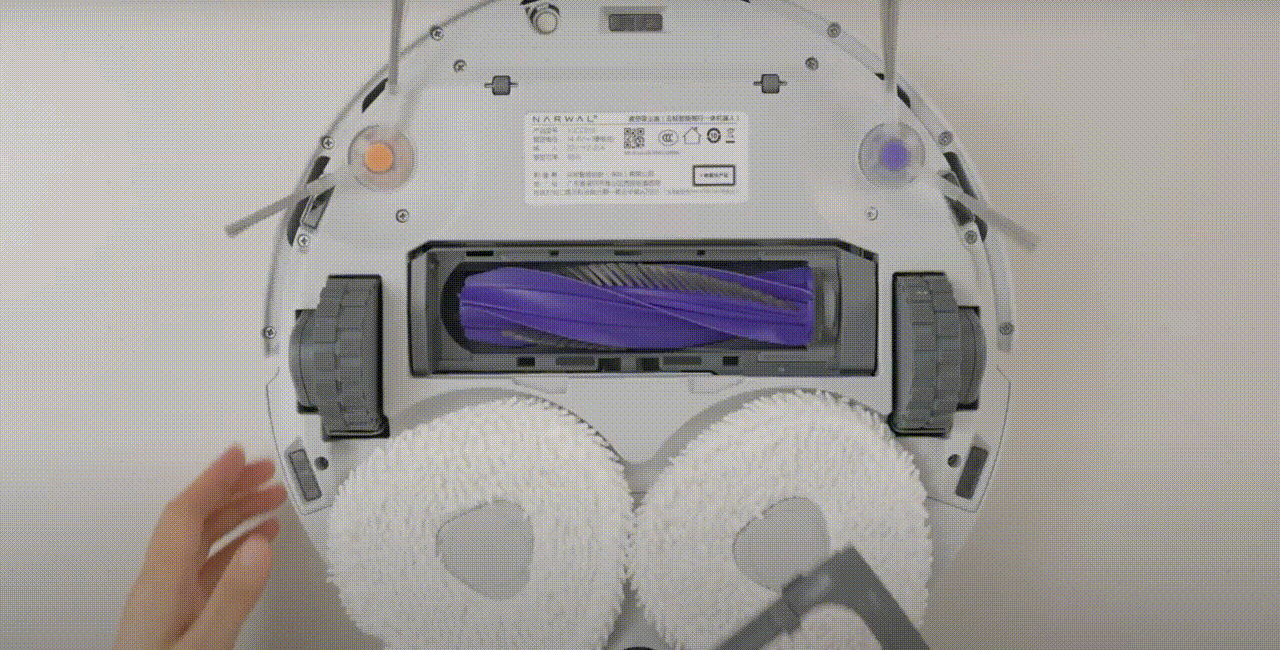

2. Inspect the wheels for oil stains and clean if present
Drive wheel: it cannot be disassembled so just wipe its surface with a damp cloth.
Caster wheel: it can be disassembled. For the method of maintaining, please refer to this video:
👉 Caster Maintenance | Freo X Ultra

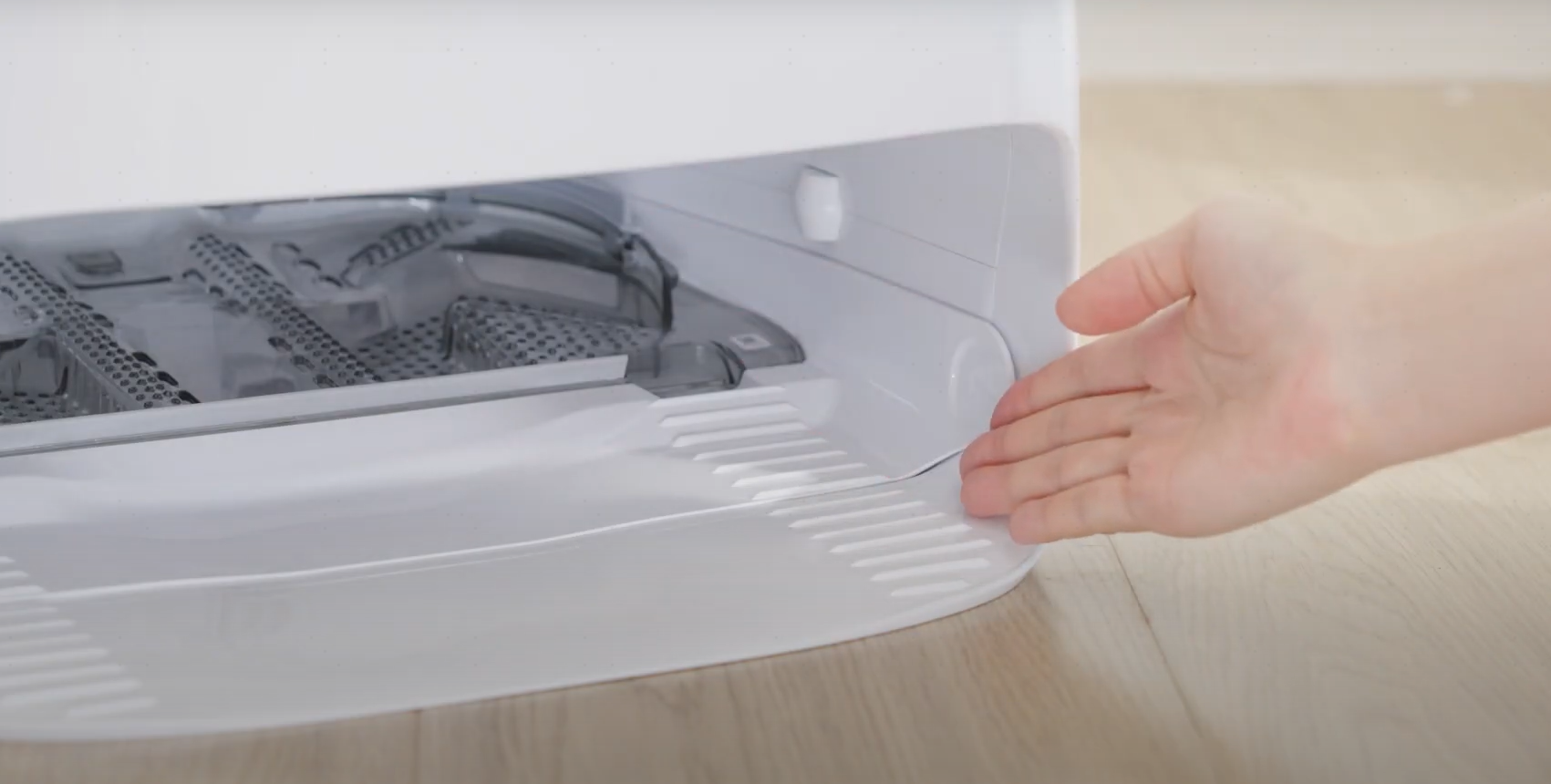

3. Check if the cleaning tray are properly installed and try reinstalling if needed
* Taking Freo X Ultra as an example, when it is installed correctly, the tray and the chassis should fit together without irregular or large gaps.

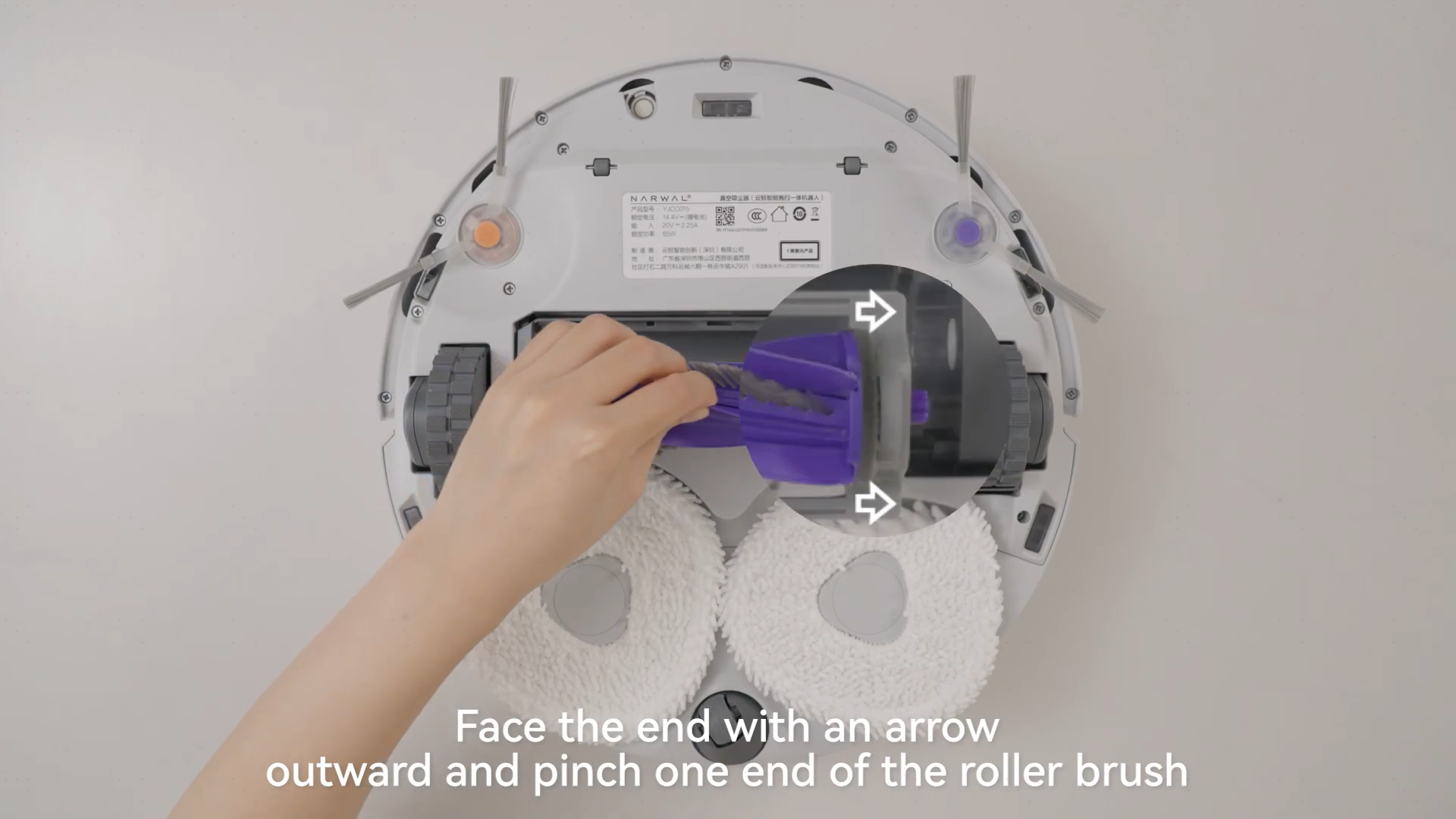

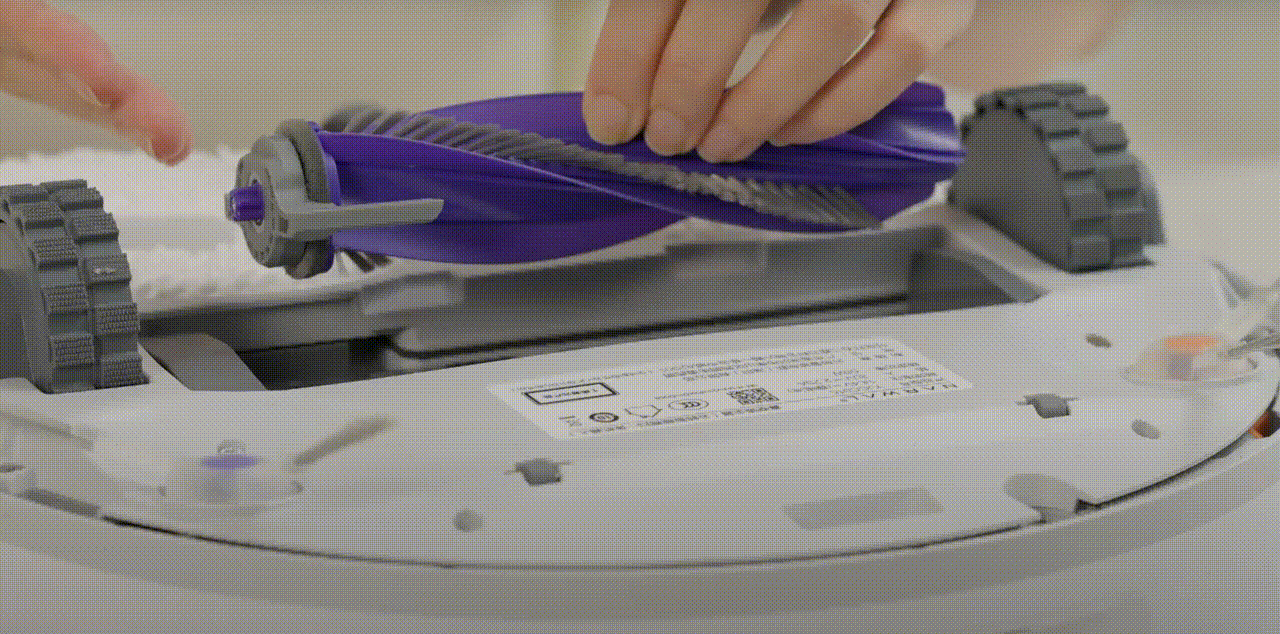

4. Verify the robot's roller brush cover is correctly installed and reinstall if necessary
*Screenshots and gifs are from this video, and the Freo X Ultra model is used for demonstration:
👉 Roller Brush Maintenance | Freo X Ultra
5. If the base station was moved, remapping is required.
